PLATFORM ELEVATORS

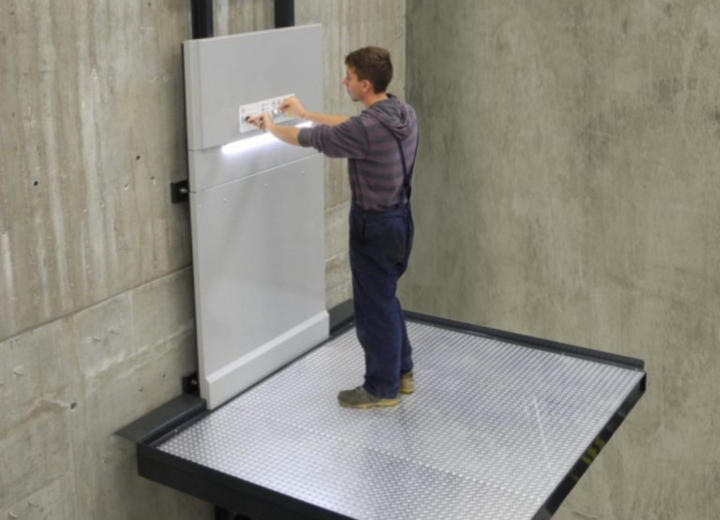

Platform Goods elevators (With attendant)
All versions with capacity from 300 Kg to 2500 Kg can be supplied with the homologated SPB system which allows the use of the lift with the operator on board, complete with safety devices listed below. The absence of the cabin permits to use the full available space making the system easier to use but keeping the maximum safety during the use thanks to the dedicated devices installed.
| CAPACITY | MAX TRAVEL | PIT | W X D MAX | FLOOR STOP STD/MAX | POWER SUPPLY |
| 300 KG | 6 | 12CM | 170 X 130 CM | 2/4 | 220 V |
| 600 KG | 6 M | 12 CM | 130 X 90 CM | 2/4 | 220 V |
| 1000 KG | 12 M | 15 CM | 280 X 200 CM | 2/4 | 400 V |
| 1500 KG | 12 M | 15 CM | 250 X 170 CM | 2/4 | 400 V |
| 2000 KG | 12 M | 25 CM | 280 X 200 CM | 2/4 | 400 V |
| 2500 KG | 12 M | 25 CM | 250 X 180 CM | 2/4 | 400 V |

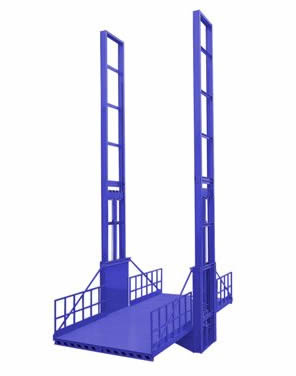

Platform Goods elevators (Without attendant)
This is an electro-hydraulic vertical goods lift designed for the transportation of goods to various underground or above-ground levels with a travel of up to 12 meters. It has a structure fixed to the wall made of special structural steel profiles in which slides combined bearings. The platform is driven by a hydraulic cylinder with double-chain transmission. It can be installed wherever it’s necessary to store or transport goods at different levels like containers, pallets, crates, boxes, and other heavy goods and more. Also, the platform sizes vary as per the capacity requirement and is tailor-made to suit your requirement. The platform goods elevators cab be supplied from a range with minimum capacity of 500 Kg and to a maximum capacity of 10,000 Kg.
